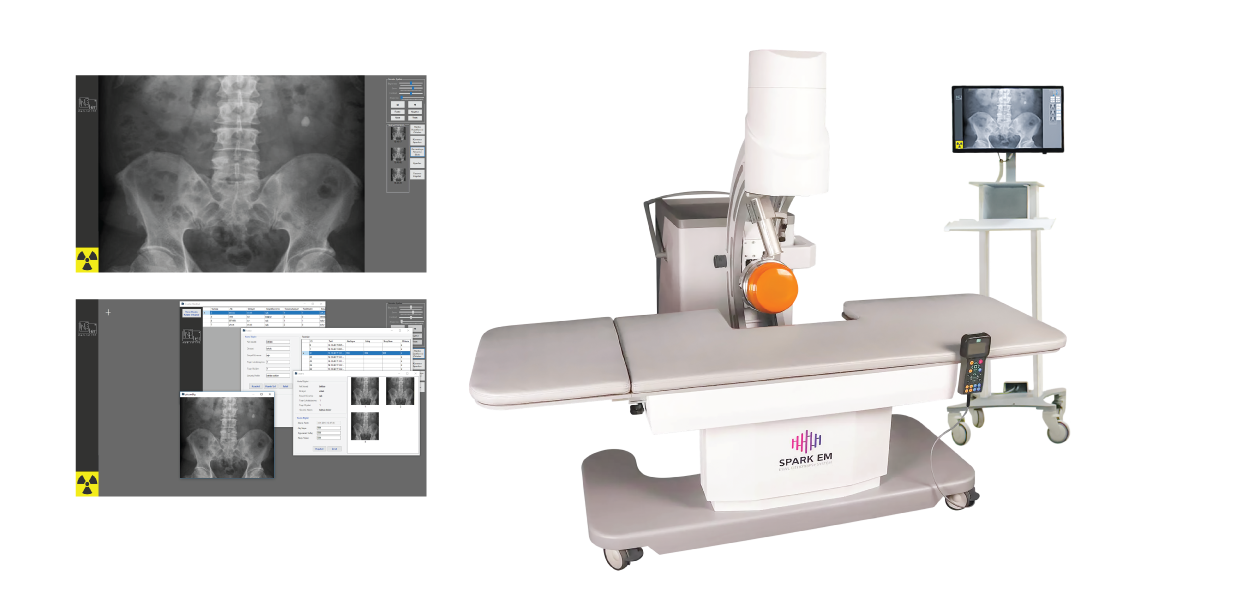

SPARK EM ESWL FOCUS SYSTEM ULTRASOUND ELECTROMAGNETIC LITOTRIPSY

SPARK EM ESWL FOCUS SYSTEM (C-ARM AND ULTRASOUND) ELECTROMAGNETIC LITOTRIPSY

The most important factor in the success of ESWL treatment is focusing. The Compact and easily controllable structure of the system is an important factor for focusing procedure. In Spark ESWL system , All procedures can be performed by a hand-held remote control. During lithotripsy, focus can be controlled from any desired location. Any brand of Ultrasound Scopy device can be attached to our system using our unique designed ultrasound Localization Attachment.



Database System Applications
  • • Patient information
  • • Medical history
  • • Stone details
  • • Stone fragmentation parameters
  • • Laboratory information
  • • X-ray dosage information

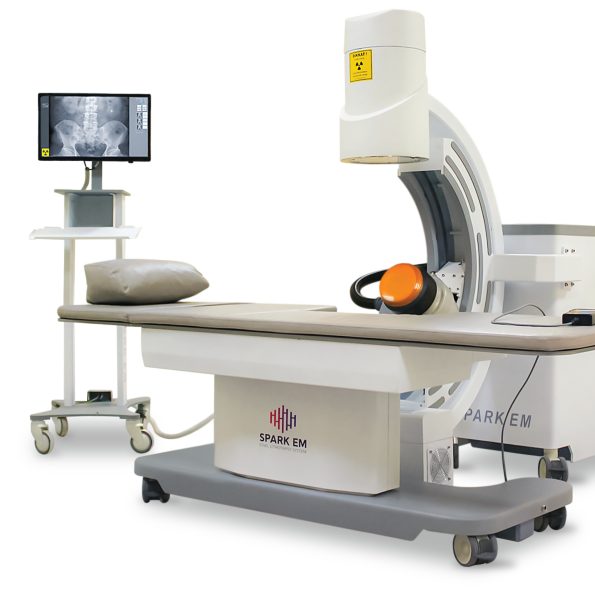

SPARK EM ESWL

Statistical information can be transferred to software programs.


The software not only archives patient and therapy data, but also stores patient images in DICOM format.

Recorded patient images and treatment can also be written on CD / DVD. Also, the recorded information can be formatted so that the images can be viewed on a regular PC.

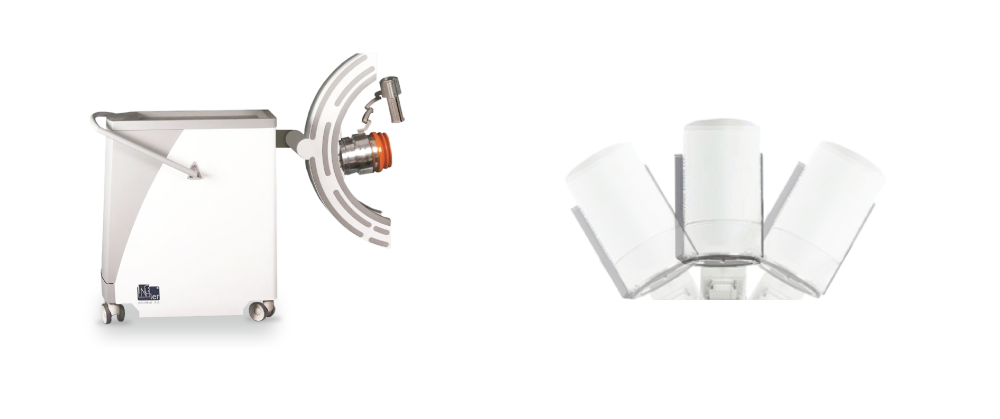

Movement Feature
Oblique movements provide great convenience in focusing to display the stone completely. In order to perform stone crushing successfully in ESWL systems.

Ergonomic & Aesthetic
The lower ureter stones can be easily broken with the fact that the desired position can be given to the patient easily.

Ease Of Usage & Technical Facilities
User can easily use the device and perform technical intervention has been taken into consideration.

Hand Remote Control
All operations can be performed with the remote hand control in the Spark EM ESWL System.

Without Scopy
ESWL Kidney Stone Crushing Systems Unit is compact and detachable on demand with its patient treatment table and C-arm scopy system.





TECHNICAL DATA



Working Priciple-Energy Source     Electromagnetic
Dimensions(Needed Space)     62cm x 175cm x 160cm
Patient Table Movements     Forward-backward(150mm)
Left-Right (150mm)
Up-Down(300mm)
Weight-Main Unit     315 Kg
Max Patient Weight     170 Kg
Imaging System     C arm Flourscopy and ultrasoundgraphy
Charge Voltage     7.5 kV – 24 kV
Magnetic Head Life     1 million shots
Patient Contact Part     Water Cushion
Voltage – Frequency     110 V – 240 V / 50 – 60 Hz Single Phase
Working Environment     0% < humidity < 60% & hygienic environment
0°C < temperature < 40 °





BEST RESULT



The ESWL System fragment the large kidney stones into small pieces of stone in order to carry out stone crushing procedure in the easiest way, and then the patient should got alot of fluids to remove small pieces through urinary tract.

Spark EM ESWL is the result of long years of experience and expertise in shock wave technology. Minimizing the side effects in Device Design is one of the main goals of the design.

High Quality products previously made by ?nceler Medikal are used worldwide and gained the trust of customers. One of the extra features of the Spark EM ESWL System; It is a high penetration depth. This contributes greatly to the treatment of obese and overweight patients. In addition, determining the net focus of the system plays a major role in stone crushing.
