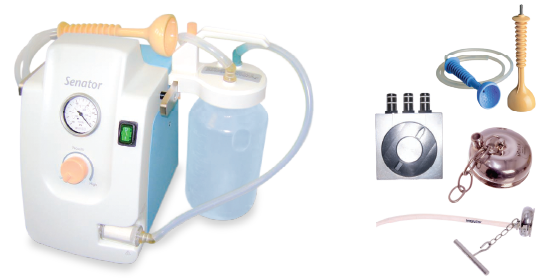

Senator Suction Pump
MedGyn Senator Suction Pump is made of high-quality components and Swiss mechanical precision to
guarantee excellent functionality. The MedGyn Senator Suction Pump is ideal for removal of
secretions, vacuum extractions, uterine suctions and for pleura drainage. The high-performing
Senator Saction Pump comes with optimized technology and a new, modern design.
Features & Benefits :
- Suction capacity of 30 l/min.
- Suction strength can be adjusted continuously and precisely.
- Rapid vacuum creation up to 85kPa.
- Compact and user-friendly pump with large, integrated recessed grip.
- Reliable ‘3guard’ protective system with float levers integrated in bottle lids and
hydrophobic bacterial filter.
- Enlarged easy to read pressure gauge.
- Maintenance-free ‘Low Friction’ piston-cylinder system ensures low vibration and
near-silent operation with minimal wear.
- Accessories include: Foot-controlled vacuum regulator, various suction cups,
switch-over valves, Apgar timer, practical instrument tray, curettes and various
tubes and adapters.
- Suction Capacity : 30 liters/minute
- Vacuum : up to 85kPa, up to 640mm Hg
- Power Consumption : 0.45A, 110 Watt (230 Volts); 1A, 110 Watt (115 Volts)
- Frequency : 230 Volts, 50/Hz; 115 Volts, 50/60Hz
- Dimensions w/o Mobile Stand : 340 x 255 x 280mm
- Dimensions w/ Mobile Stand : 1500 x 470 x 570mm
- Weight w/o Mobile Stand : 7.4kg
- Weight w/ Mobile Stand : 18.4kg

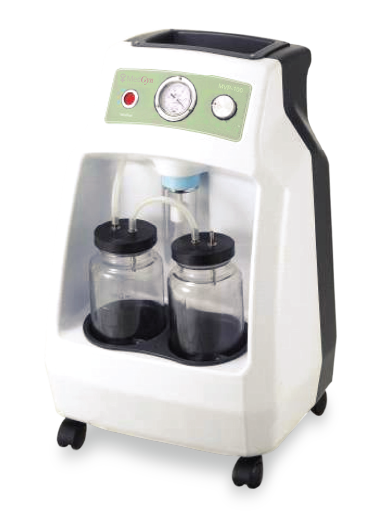

MVP-100 Suction Pump
The MVP-100 MedGyn Suction Pump is designed for safety and convenience. It features a
push switch linked directly to the pump and a trap bottle to control overflow.
- Applied oil-less piston vacuum pump
- Built-in anti-overflow device
- Push switch (red button) linked directly to pump for ease of
checking pump status
- Control low-voltage for user safety (under DC 12V)
- Dimensions : 510mm (W) x 435mm (L) x 765mm (H)
- Pump : oil-less piston
- Max Vacuum : 740mm Hg
- Flow Rate (air) : 50L/min
- Collection Bottle : 3000cc x 2ea
- Power Resource : 110v~220v AC, 50/60Hz
- Power Consumption : 300W (AC)
- Weight : 17kg
- Includes: Foot Switch, Collection Bottle, Power Cable, User Manual

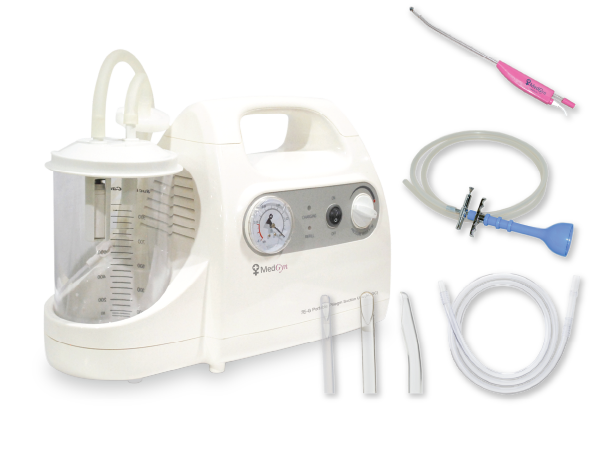

Portable Suction Pump
MedGyn’s Portable Suction Pump is a battery operated pump with a oil-free lubrication piston
and is maintenance-free. Adequate suction power for procedures ranging from assisted
delivery (Pic 1) to endometrium biopsy (Pic 2) and curettage (Pic 3, 4).
Features & Benefits :
- Light weight for easy transfer between clinics.
- Equipped with 12v rechargeable battery for multiple procedures inareas without
- The internal battery shall be charged fully in about 4 hours.
- Plug-in cable available for emergency use.
- Includes 1000 ml autoclavable collection jar suction tube.
- Airflow rate : 25L min (±10%)
- Vacuum range : 0-650mm Hg (±10mm Hg)
- Vacuum gauge : 0-750mm Hg Dial gauge
- Collection bottle : 1000mL x 1pc
- Lithium Sealed Lead-Acid 12V battery : 100 min.
- Net Weight : 5.8 kg (12.8 Lbs.)
- Dimensions : 200 x 355 x 240mm
- Power source : 90VAC~240VAC, 50/60Hz, or 12VDC
